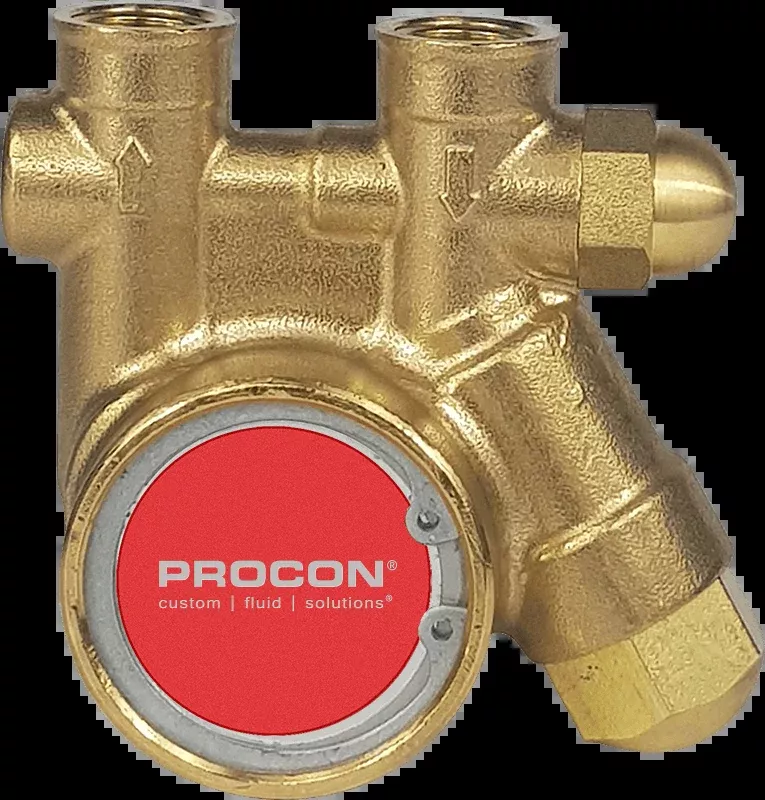

100 GPH Clamp-On Procon 101C100F11BC Series 1 Rotary Vane Pump – Brass with Plastic Coupling

Description

The Procon 101C100F11BC Series 1 is a high-performance rotary vane displacement pump designed for precision fluid delivery in commercial carbonators, espresso machines, and water filtration systems. Delivering a consistent 100 GPH (300 LPH), this brass-bodied pump features an integrated stainless steel strainer to protect the internal carbon vanes from particulates. Engineered with a slotted drive and a durable 1143-2 plastic coupling, this clamp-on model provides a reliable, pulse-free flow for high-demand beverage applications.

• Flow Rate: 100 GPH (300 LPH)
• Inlet/Outlet Ports: 3/8″ NPT
• Mounting Type: Standard Clamp-On (Series 1)
• Drive Configuration: Slotted shaft with 1143-2 Plastic Coupling
• Internal Materials: High-density Carbon Vanes and Solid Ultem Valve
• Elastomers: EPDM/Nitrile for broad temperature and chemical compatibility
• Pressure Range: 60–99 PSI Relief Valve Setting (250 PSI Max Discharge)
• Operating Temperature: -4°F to 160°F (-20°C to 71°C)

Technician’s Note: This “C” configuration (101C) specifically utilizes a plastic coupling, which acts as a mechanical “fuse” to protect the motor in the event of a pump lock-up. Never run this pump dry; the carbon vanes and ceramic seals rely on the fluid for lubrication. If you experience a sudden loss of pressure, check the integrated 100-mesh strainer first—mineral scale or debris can block the intake, causing cavitation and permanent damage to the internal seals.
