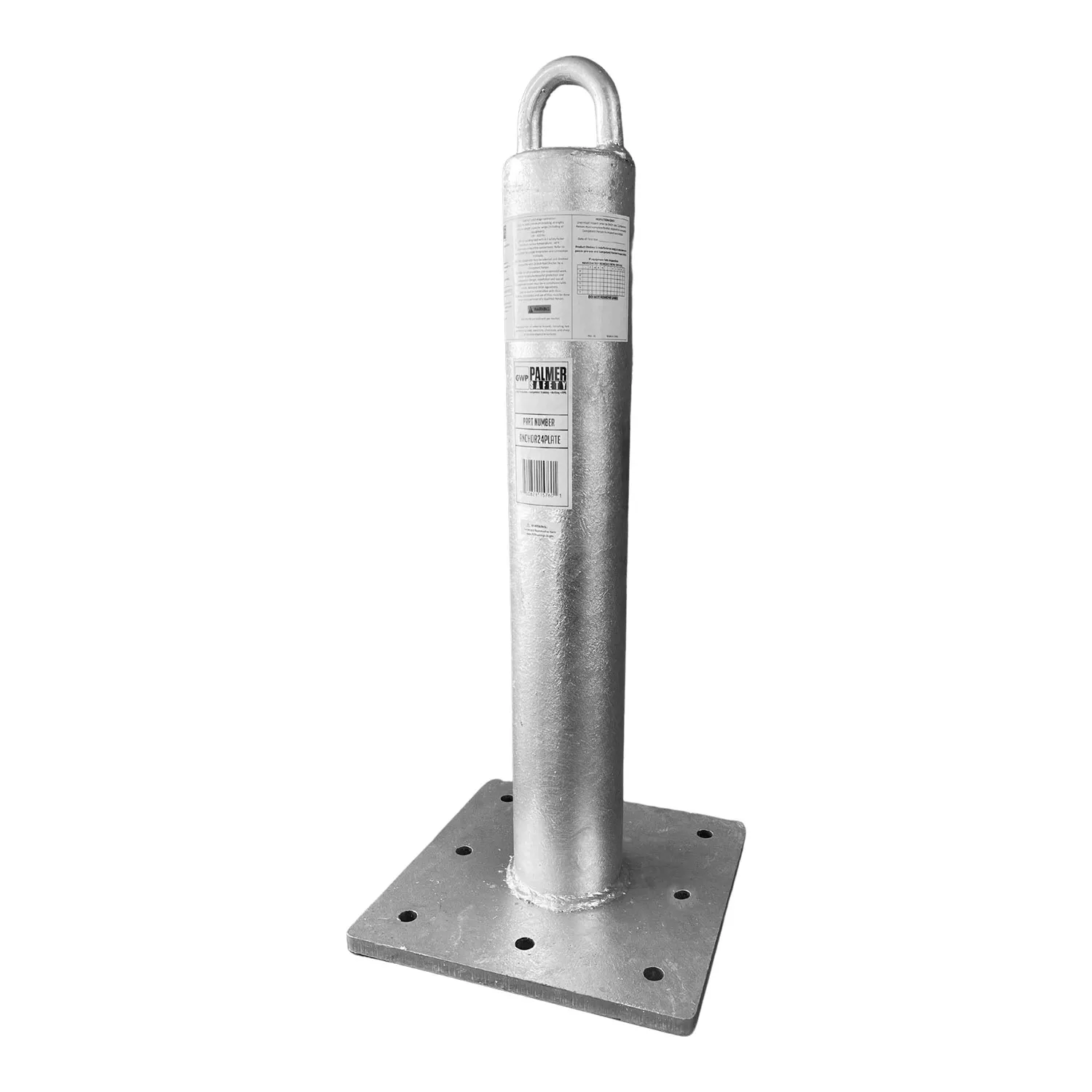

24” Roof Tieback w/Baseplate

Sale!
24” Roof Tieback w/Baseplate

24” Roof Tieback w/Baseplate

Original price was: $280.00.Current price is: $172.96.

87 in stock

SKU: ANCHOR24PLATE Category:

Description

24” Roof Tieback w/Baseplate Galvanized Finish, 5/8” Thick Baseplate, 5,000 Lb. MBS, Fixed Connection Point for Single Point Tie-off or HLL Endpoint. Meets or Exceeds OSHA 1910 and 1926 Subpart M, ANSI Z359.18-2017 and ANSI A10.32-2012.

Key Features

DESIGN:

  • Extends through roofing so it’s accessible both during and after construction
  • Intended for permanent locations
  • Compatible with horizontal lifelines
  • Compatible for installations onto concrete substrates and structural metal beams (with backing plate)

STANDARDS:

OSHA 1926 Subpart M & 1910 and ANSI Z359.18-2017 & A10.32 -2012 Type A Anchorage Connector

MATERIALS:

Galvanized Steel

WORKER CAPACITY:

130 – 420 lbs.

PERFORMANCE:

  • Maximum Users: 1
  • 5,000 lb. MBS (Minimum Breaking Strength)

NOTES:

  • Minimum service temperature: -30°F
  • Suitable for use in combination with HLL Systems

WEIGHT:

57 lbs.

Downloads

Download Image

Download Tech Sheet

Download Manual
